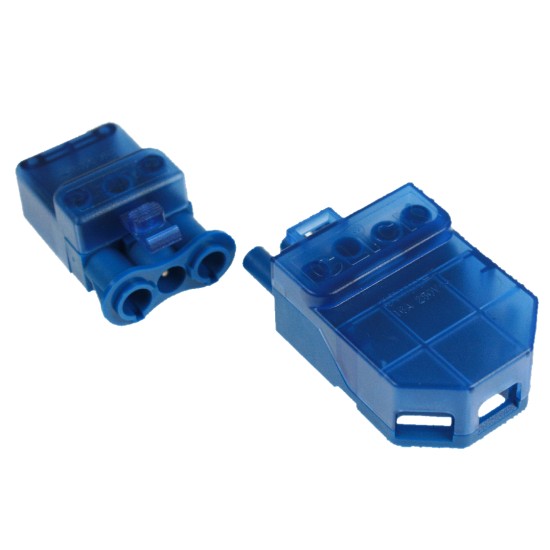

Ceiling Junction Block For Pendant Downlighter Click System

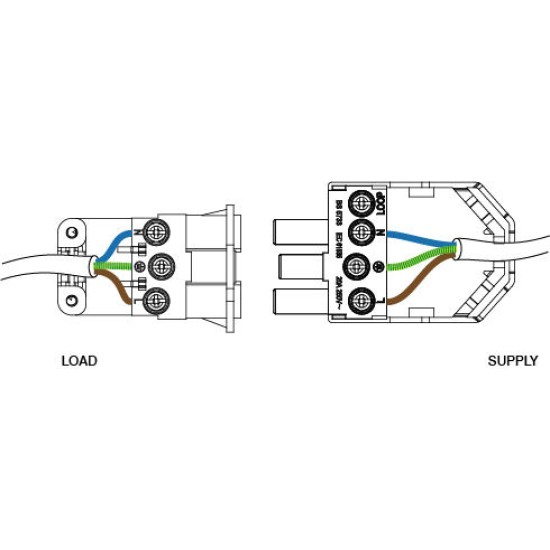

Small plug-in connectors give you easy access with large terminals and fast connection for replacing modern ceiling junction roses and providing a simple method of wiring up the new rose prior to connection to the ring main
Designed for lighting circuits to enable isolation of light fittings by allowing connections to be made to your pendant set and then simply offer up into place before tucking neatly away in the ceiling cavity
Details
• 250V ~ 20A;
• Length: 115mm;
• Width (at widest point): 40mm;
• Depth: 23mm
• Male: Max 1.5mm² 3 core cable;
• Female: Max 3 x 2.5mm² twin & earth (with additional loop terminal);
• Operating temperature range of +50C to -15C

These junction boxes are perfect for use with our authentic styled Bakelite ceiling roses and vintage braided flex.
